350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation

Power (kW) : 350

Place of Origin : Sichuan, China

Brand Name : DUOLIN

Duty Cycle : 24 hours No-stop

MOQ : 1

Input power : 380V/440V/480V/600V

Certification : CE

After-sales Service Provided : Overseas service center available

Delivery Time : 60 days

key selling points : Remote Control

Heating Temperature : 800-1250°C

Contact Now

Automatic Turnkey IGBT Bolt Head Nut Induction Forging Equipment Industrial Induction Heater
IGBT Bolt Head Induction Forging Equipment
Applications
  • Material Heating: Carbon Steel, Stainless Steel, Alloy, Brass, Aluminum, etc.
  • Position Forging: Whole and partial induction forging
  • Work-piece Hot Forging & Forming: Standard parts, fasteners, master pieces, small hardware, round bar and billet, etc.
  • Specific Applications: Bolts and nuts forging and hot upsetting, pipe induction forging and forming, auto parts (connecting rod, crank shaft, etc.), cast iron beam heating and continuous heating, oxygen bottle forging, rivet heating, long round, square and angle bar and billet heating, etc.
Application Display
350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation
Features

Induction heating technology is increasingly being used for industrial forging applications because it offers an unbeatable combination of speed, consistency, control and efficiency.

DUOLIN offers induction forging machine used for heating a wide range of bar and billet diameters. DUOLIN induction power supply is the latest generation; help you benefiting from the forging industry.

  • Semi-automatic feeding system
  • PLC control panel
  • Heating rapidly reduces oxide skin on billet
  • Continuously working, 24 hours non-stop
  • Be Started up 100% at any load
  • Less interference to others equipment in workshop (Proved by CE)
  • IGBT inversion technology & LC series circuit design achieve energy saving up to 15%-30% compared with SCR technology
System Components
1. Power Unit (MFP-250Y2)
350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation
2. Heating Furnace
350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation

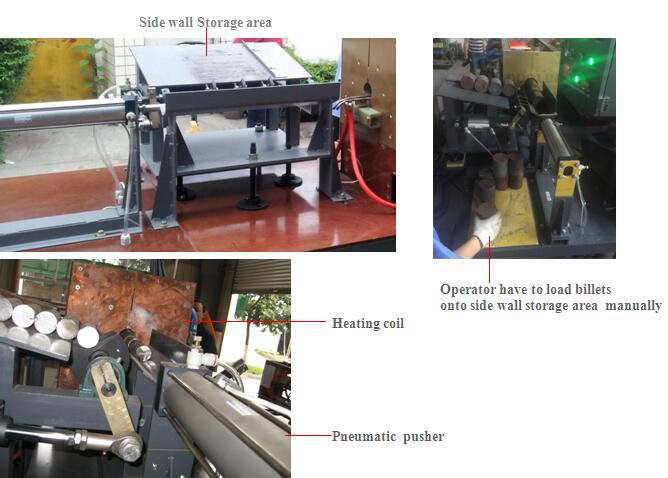

3. Pneumatic Feeding System

It is designed to semi-automatic feeding of billets to heating coil

350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation

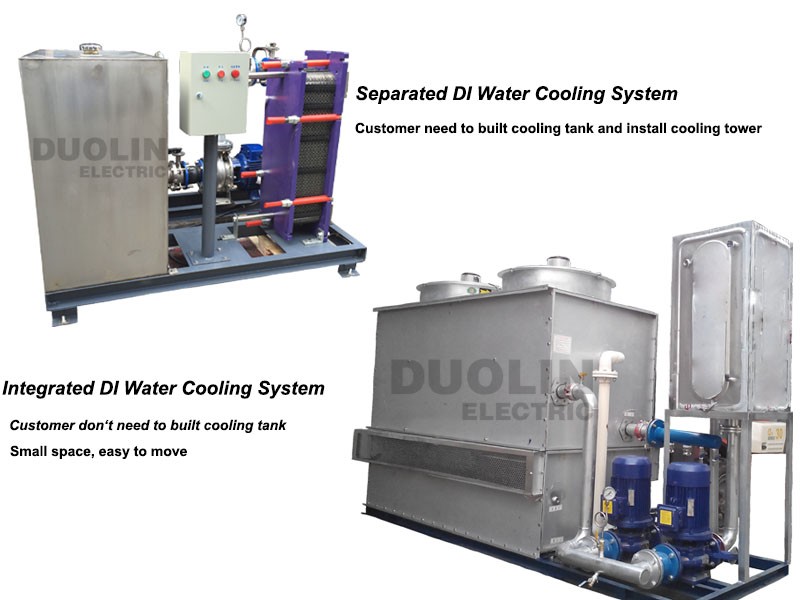

4. Water Cooling System
350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation
Internal Assembly
350 KW Power IGBT Induction Forging Machine With PLC Control Panel 24 Hours Non Stop Operation
Technical Parameters
Model MFP-100Y2 MFP-160Y2 MFP-250Y2 MFP-350Y2
Rated Output Power 100KW 160KW 250KW 350KW
Working Frequency 0.5-10KHZ 0.5-8KHZ 0.5-8KHZ 0.5-8KHZ
Power Capacity 140KVA 230KVA 340KVA 450KVA
Input Power 380V/50Hz 3 phases 4 lines
Packaging & Shipping
Packaging Details

Equipment is packed with plastic film, Polyfoam filling, and Bolt Secured. Suitable for sea transport and air transport.

Delivery Details

FOB any port in China
CIF any port which customer request
Express services available: FedEx, DHL, EMS, TNT

Delivery Time
  • HFP-20: 7-10 days
  • HGP series: 10-30 days
  • SSFA2 series: 7-10 days
  • SSFD2 series: 10-15 days
  • MFPD2 series: 40-60 days
  • MFPY2 series: 40-60 days
Ordering Information - Forging Applications
Order Tips
  1. DUOLIN will evaluate which model is suitable for your case. Please provide your work-piece parameters: Material, Dimension (diameter*length*heating length), Output, Heating temperature, etc.
  2. Please provide the input power in your factory, so we can evaluate suitable model for you.
  3. DUOLIN also design and manufacture induction machine for customer's requirement, including color for machine and for electric lines and language.
  4. Details of Price please chat on-line or email us. The above pictures are for reference only. We will send specific details to your own case.
